this project is ongoing since year 2010.

napenergiához kapcsolódó tevékenységek. a rendszer 200wp panelből, szigorú 12v-os dc hálózatból és 540ah @ 12v mélykisüthető akkuból áll. ez táplálja a lakás lapanet.hu/led oldalon részletezett világí­tását, valamint a lapanet.hu/kompjuta/v7 oldalon tárgyalt számí­tástechnikai rendszert.

-

progress with solar energy. the implementation consists of 200wp pv panels and a strict 12v dc system backed up by 540ah@12v deep-discharge batteries. the system serves the lighting of the house as found on page lapanet.hu/led, and also the home computing infrastructure found on lapanet.hu/kompjuta/v7.

001 charge controller and inappropriate battery.JPG

1179

kB

002 solar input - battery - 12v dc output.JPG

1235

kB

003 temperature sensor and 16mm2 cable.JPG

1276

kB

004 compacted for test runs.JPG

1264

kB

005 first tests - 2 x 100wp value solar panels.JPG

1436

kB

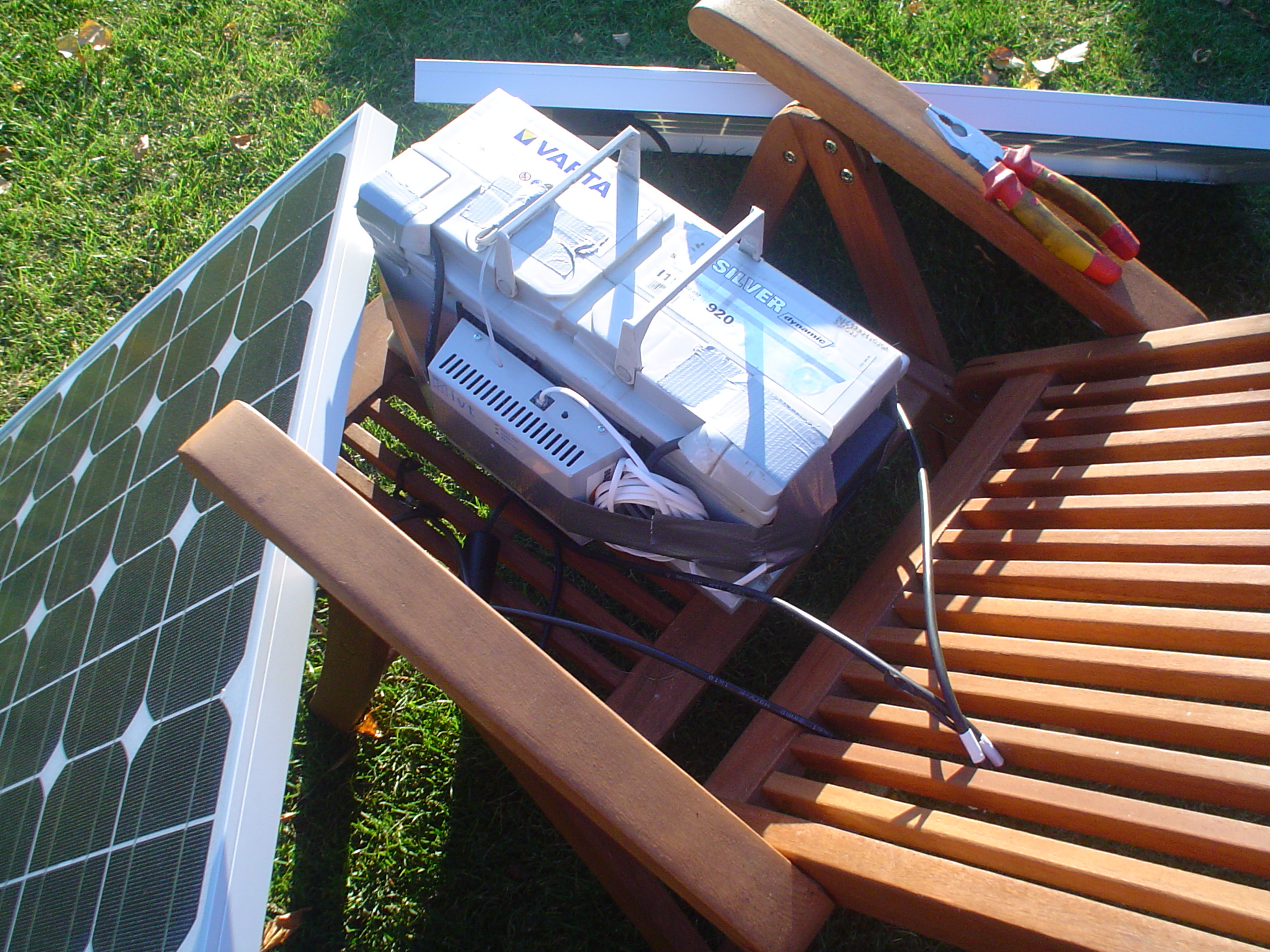

006 one can see the cells from behind.JPG

1431

kB

007 the backup input power and an ac-dc adapter for 3 notebooks both 20v 90w.JPG

1444

kB

008 3 x 25a 1-0-2 switch with 10mm2 and 2.5mm2 cables.JPG

1306

kB

009 summer max position of sun in hungary.png

26

kB

010 winter min position of sun in hungary.png

24

kB

011 minimum and maximum degrees of sunshine.png

8

kB

012 sun collector sketch.png

6

kB

013 first plot of temperature sensors.png

36

kB

014 an afternoons 5 x 4000 records plotted.png

42

kB

015 20 days and every second of 1 million records plotted.png

85

kB

016 electricity consumption chart with no solar yet.png

17

kB

017 first plot with separated sensors.png

42

kB

018 the same at a larger interval.png

53

kB

019 a few weeks data.png

95

kB

020 all data plotted just for the sake of fun.png

94

kB

021 temperature of solar panel for a few weeks.png

60

kB

022 the (almost) perfect day delivering 1135wh.png

55

kB

023 a bad week.png

64

kB

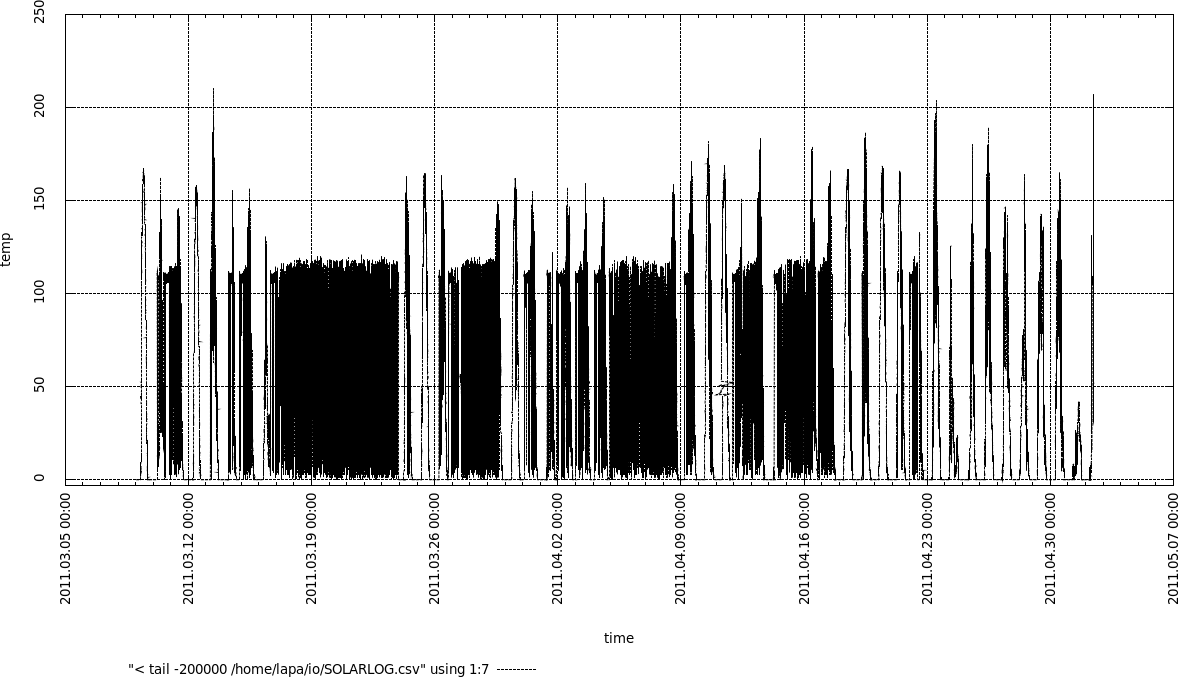

024 output watts - the blocks show adapter-based operation.png

79

kB

025 output watts using the 90w thinkpad adapter as panel replacement.png

134

kB

026 watt-hours with adapter-supported days cleared.png

150

kB

027 active cooling for the pv panel as tile replacement.JPG

1419

kB

028 made of standard drain half-tube.JPG

1384

kB

029 acts as a normal tile behind the panel.JPG

1332

kB

030 simple thermo switch will turn on fan above 50 and down to 35 degrees.JPG

1278

kB
