lapanet \| kompjuta \| v6_panel this project is from year 2008.
a kihajtható számítógépasztal első verziója. az aktuális állapot megtalálható a lapanet.hu/kompjuta/v7 oldalon. - the first version of turnable pc table. the current design can be found on page lapanet.hu/kompjuta/v7.

broadband		DIR

001 one of the 18 kg base iron pieces and the recycled stainless tube.JPG	104	kB
002 the turnarm with the 16mm shaft.JPG	86	kB
003 machined flange.JPG	73	kB
004 bottom part cut off for the turnarm with angle grinder.JPG	87	kB
005 dry-testing the position of turnarm.JPG	118	kB
006 height looks fine.JPG	114	kB
007 dual-head.JPG	108	kB
008 17 inch looks larger than 32 inch.JPG	93	kB
009 temporary workstation.JPG	121	kB
010 turnarm attached to iron base.JPG	92	kB

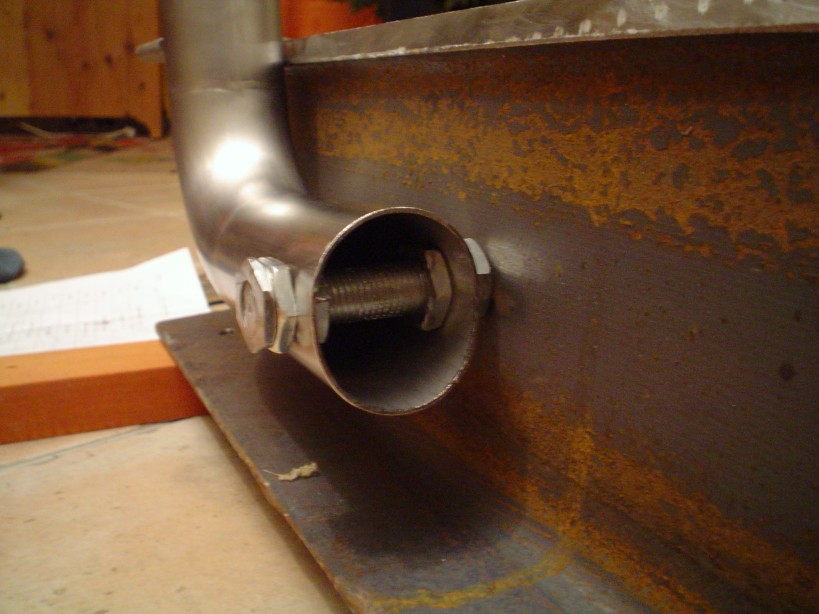

011 nuts were halved to leave enough space within and below the tube.JPG	93	kB
012 pivot point is known to be an achilles.JPG	89	kB
013 turnarm in open position.JPG	80	kB
014 some peripherals needed to be replaced - duck tape is reused.JPG	119	kB
015 2 screws keep each neighbouring iron parts together with wood spacers.JPG	115	kB
016 cables pulled through the tube.JPG	84	kB
017 still a bit messy because final needed length is unknown yet.JPG	96	kB
018 usb hub hidden in the base.JPG	94	kB
019 hardwood platform prepared with angle grinder.JPG	67	kB
020 still alpha phase but feature complete.JPG	101	kB
021 panel is kept in place by wrench.JPG	113	kB
022 panel and mousepad in place - inox-foil intead of large dark surface.JPG	95	kB
023 closer edge was planed for ergonomics.JPG	98	kB

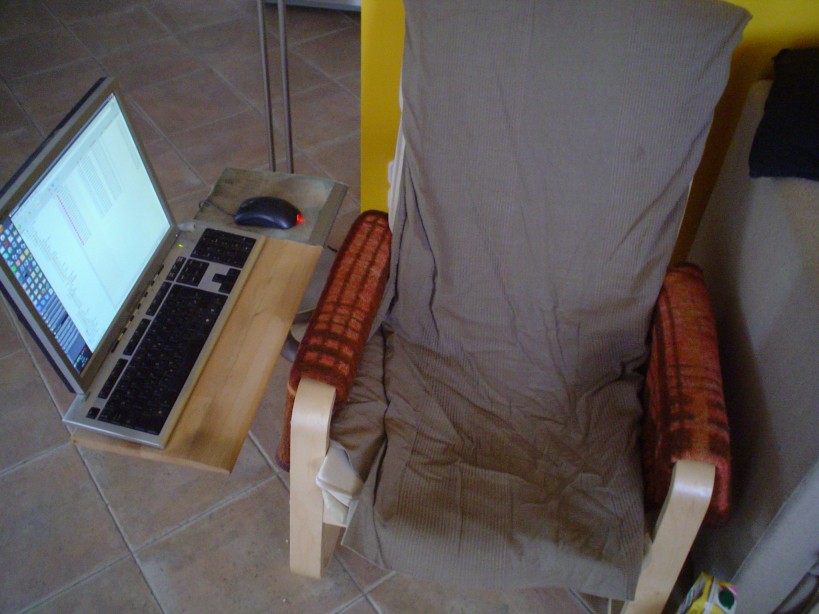

024 opened state.JPG	100	kB
025 hidden smart card reader.JPG	84	kB
v6_panel_26.MPG	5597	kB
